Roland V-1SDI 4-Channel HD Video Switcher

Roland V-1SDI 4-Channel HD Video Switcher

  • Order within
Available: In Stock
R 27,995.00
Successful Pre-order.Thanks for contacting us!
Overview

Compact yet Powerful SDI Video Switcher

Compact, comprehensive, and ready to interface with professional SDI-equipped video gear, Roland's V-1SDI video switcher combines four channels of video mixing with all the compositing modes, transitions, audio mixing, and I/O you could ask for. Extensive and flexible I/O includes SDI, which supports professional video equipment and long cable runs, as well as HDMI. Both an integrated HDMI scaler and a 2-mode SDI output (PGM/PST) provide ample system integration flexibility. On top of that, you can add an HDMI screen for quad-source monitoring, a laptop running remote control software, and even an RS-232 controller, making the V-1SDI an ideal hub for your video rig.

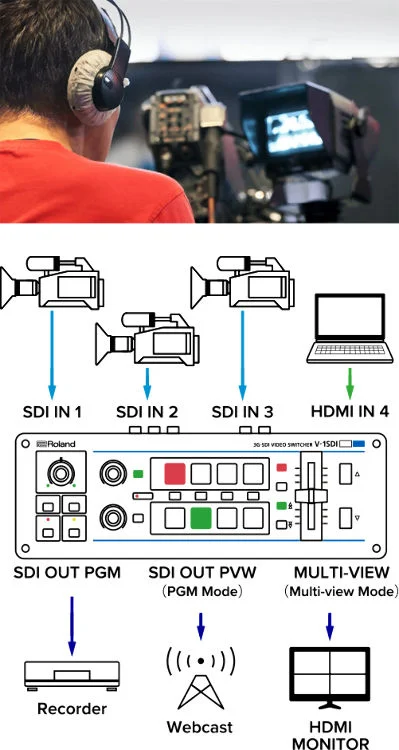

Perfect for media production in the field

If you're using SDI-equipped cameras, you could hardly ask for a better video switcher for videography, webcasting, and mobile media production than Roland's compact V-1SDI. This simple switcher is light to pack, takes seconds to set up, and includes flexible SDI outputs allowing you to send PGM signal to two sources at once, such as dedicated recorders and web-streaming interfaces. It also provides audio processing, including a microphone input with EQ, compression, delay, and other processing, making it easy to record voice-overs and interviews in real time.

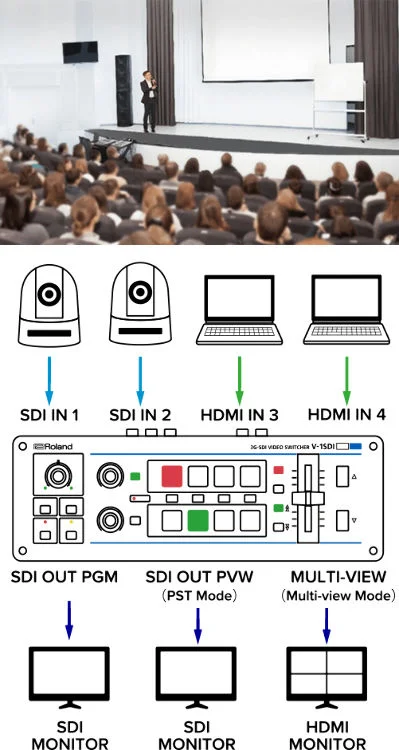

A great option for simple installations

Equipped with SDI I/O, which is capable of far greater cable runs than HDMI, the Roland V-1SDI is an elegant video switcher for multimedia auditoriums and similar venues. At the same time, two HDMI inputs allow you to connect computers and video players, and since one of the HDMI inputs includes a scaler, you can even use standard-definition sources. What's more, the V-1SDI comes equipped with an RS-232 serial port, allowing you to connect it to more elaborate video system controllers as your needs grow.

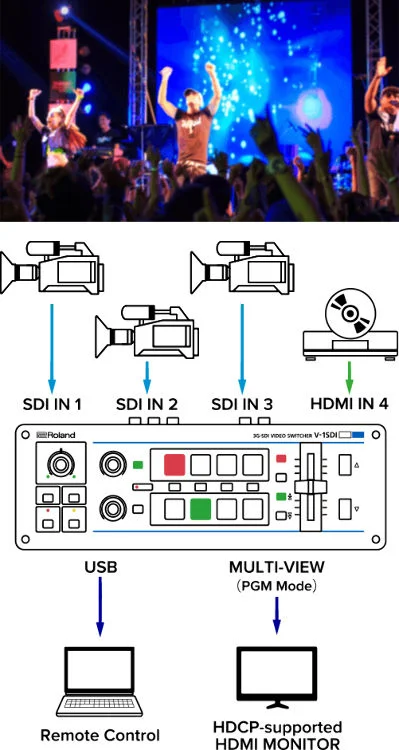

Excellent video support for live events

When you run a multi-camera live shoot, the last thing you want to deal with is unnecessary complication, making the simplicity of the V-1SDI indispensable. Large multicolor, backlit buttons make source selection effortless while hands-on controls, including the T-Fader lever, make fades and other transitions extremely smooth. Picture-in-picture mode also comes in handy, especially for live music, and when you need in-depth control, you can easily hook up your laptop to instantly access advanced settings.

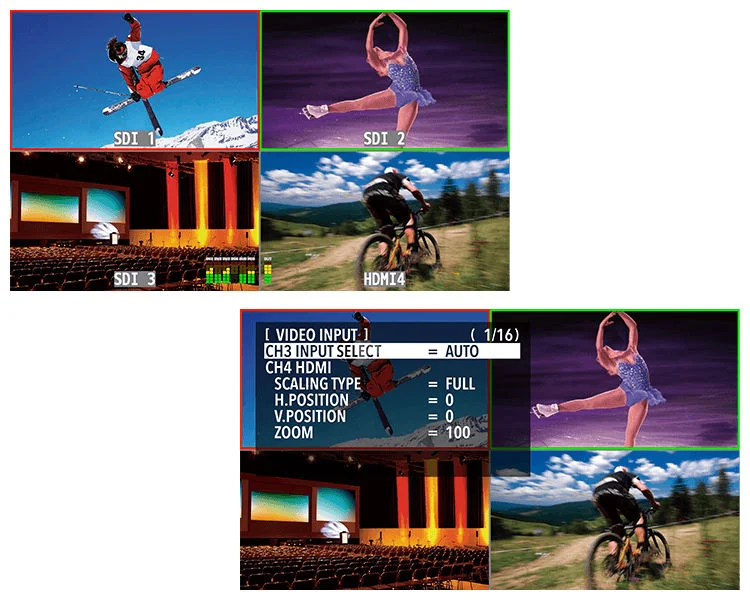

Quad multi-viewer makes monitoring easy

Just hook up a screen to the multi-view output, and you get a full quad preview of your input sources. Each quadrant of the screen is color coded (red for active, green for cued) so you can check your setup at a glance. This multi-view monitor also provides you with useful data, including various setup options and full audio monitoring for each input. Best of all, the multi-view output uses standard HDMI, so you don't have to buy an expensive video monitor to take advantage of this useful function.

Loaded with transition and comp effects

Downstream keying, picture-in-picture, split, and even quad compositing effects — Sweetwater video techs were impressed by the V-1SDI's extended capabilities. Whether you're chroma keying or luminance keying out backdrops, overlaying titles, adding lyrics, or even logos to your video, the V-1SDI has it covered. What's more, all the standard effects are there, from adjustable fades to 15 classic transitions, each with either hard or soft edges.

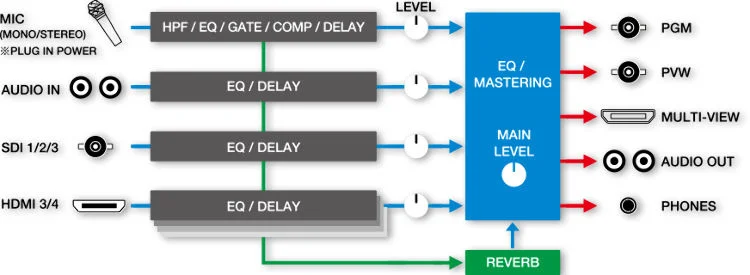

Full-fledged digital audio mixer onboard

Including stereo audio inputs from all your SDI and HDMI sources, additional stereo line-level input, and a mic input, the V-1SDI is fully capable of handling all the audio you need. What's more, there's a full 14-channel digital mixer onboard, complete with adjustable sync delay for each channel (up to 500ms), so you can keep all your audio and video locked together. Audio transitions can follow video transitions, and the master mix gets embedded in both the HDMI and SDI outputs for easy recording.

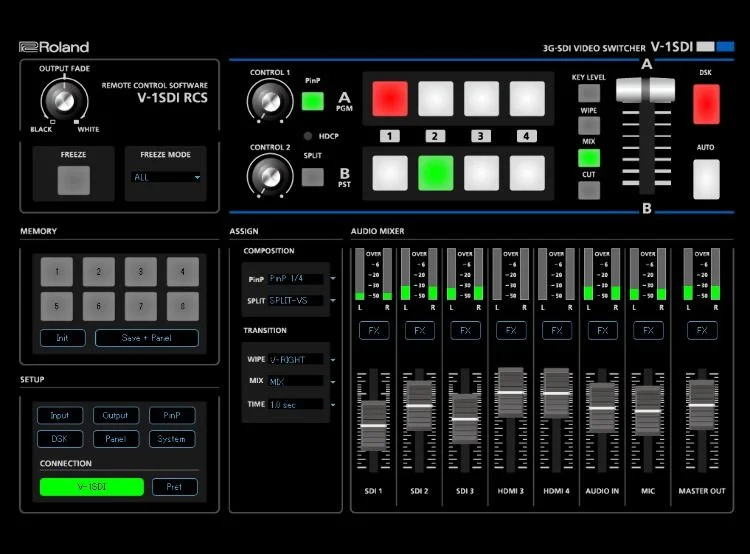

Access advanced functions remotely

When you need to get your hands on the V-1SDI's advanced functions, and every second matters, then you'll appreciate Roland's V-1SDI RCS software. Connected via USB to your Mac or Windows computer, RCS lets you change transition and comp settings, mix audio, and access additional parameters via an elegant user interface. Additionally, you can extend the hardware interface by connecting an external video controller via the RS-292 serial port.

Roland V-1SDI Video Switcher Features:

  • Compact 4-channel video switcher for professional applications
  • Perfect for mobile rigs, installs, and live video mixing
  • Supports SDI and HDMI sources and up to 1080p output
  • Easy-to-operate hardware controls include essential visual feedback
  • Add any HDMI display for quad input monitoring with labels and metering
  • Composition effects include chroma and luminance keying plus picture-in-picture
  • Full 14-channel audio mixer with adjustable sync delay and microphone input onboard
  • Access advanced controls via the V-1SDI RCS software for Mac and Windows PCs
  • Connect an optional hardware remote via the RS-232 serial connection

Compact yet Powerful SDI Video Switcher

Compact, comprehensive, and ready to interface with professional SDI-equipped video gear, Roland's V-1SDI video switcher combines four channels of video mixing with all the compositing modes, transitions, audio mixing, and I/O you could ask for. Extensive and flexible I/O includes SDI, which supports professional video equipment and long cable runs, as well as HDMI. Both an integrated HDMI scaler and a 2-mode SDI output (PGM/PST) provide ample system integration flexibility. On top of that, you can add an HDMI screen for quad-source monitoring, a laptop running remote control software, and even an RS-232 controller, making the V-1SDI an ideal hub for your video rig.

Perfect for media production in the field

If you're using SDI-equipped cameras, you could hardly ask for a better video switcher for videography, webcasting, and mobile media production than Roland's compact V-1SDI. This simple switcher is light to pack, takes seconds to set up, and includes flexible SDI outputs allowing you to send PGM signal to two sources at once, such as dedicated recorders and web-streaming interfaces. It also provides audio processing, including a microphone input with EQ, compression, delay, and other processing, making it easy to record voice-overs and interviews in real time.

A great option for simple installations

Equipped with SDI I/O, which is capable of far greater cable runs than HDMI, the Roland V-1SDI is an elegant video switcher for multimedia auditoriums and similar venues. At the same time, two HDMI inputs allow you to connect computers and video players, and since one of the HDMI inputs includes a scaler, you can even use standard-definition sources. What's more, the V-1SDI comes equipped with an RS-232 serial port, allowing you to connect it to more elaborate video system controllers as your needs grow.

Excellent video support for live events

When you run a multi-camera live shoot, the last thing you want to deal with is unnecessary complication, making the simplicity of the V-1SDI indispensable. Large multicolor, backlit buttons make source selection effortless while hands-on controls, including the T-Fader lever, make fades and other transitions extremely smooth. Picture-in-picture mode also comes in handy, especially for live music, and when you need in-depth control, you can easily hook up your laptop to instantly access advanced settings.

Quad multi-viewer makes monitoring easy

Just hook up a screen to the multi-view output, and you get a full quad preview of your input sources. Each quadrant of the screen is color coded (red for active, green for cued) so you can check your setup at a glance. This multi-view monitor also provides you with useful data, including various setup options and full audio monitoring for each input. Best of all, the multi-view output uses standard HDMI, so you don't have to buy an expensive video monitor to take advantage of this useful function.

Loaded with transition and comp effects

Downstream keying, picture-in-picture, split, and even quad compositing effects — Sweetwater video techs were impressed by the V-1SDI's extended capabilities. Whether you're chroma keying or luminance keying out backdrops, overlaying titles, adding lyrics, or even logos to your video, the V-1SDI has it covered. What's more, all the standard effects are there, from adjustable fades to 15 classic transitions, each with either hard or soft edges.

Full-fledged digital audio mixer onboard

Including stereo audio inputs from all your SDI and HDMI sources, additional stereo line-level input, and a mic input, the V-1SDI is fully capable of handling all the audio you need. What's more, there's a full 14-channel digital mixer onboard, complete with adjustable sync delay for each channel (up to 500ms), so you can keep all your audio and video locked together. Audio transitions can follow video transitions, and the master mix gets embedded in both the HDMI and SDI outputs for easy recording.

Access advanced functions remotely

When you need to get your hands on the V-1SDI's advanced functions, and every second matters, then you'll appreciate Roland's V-1SDI RCS software. Connected via USB to your Mac or Windows computer, RCS lets you change transition and comp settings, mix audio, and access additional parameters via an elegant user interface. Additionally, you can extend the hardware interface by connecting an external video controller via the RS-292 serial port.

Roland V-1SDI Video Switcher Features:

  • Compact 4-channel video switcher for professional applications
  • Perfect for mobile rigs, installs, and live video mixing
  • Supports SDI and HDMI sources and up to 1080p output
  • Easy-to-operate hardware controls include essential visual feedback
  • Add any HDMI display for quad input monitoring with labels and metering
  • Composition effects include chroma and luminance keying plus picture-in-picture
  • Full 14-channel audio mixer with adjustable sync delay and microphone input onboard
  • Access advanced controls via the V-1SDI RCS software for Mac and Windows PCs
  • Connect an optional hardware remote via the RS-232 serial connection
Processing
Video Processing 8-bit 4:2:2 (YPbPr)
Audio Processing 24-bit at 48 kHz
Input Signal Formats
SDI Inputs 1 to 3
1080p: 59.94/50
1080i: 59.94/50
720p: 59.94/50

Conforms to SMPTE 424M (SMPTE 425M-AB), 292M, 259M-C
HDMI Input 3
1080p: 59.94/50
1080i: 59.94/50
720p: 59.94/50

HDCP supported

Input 4
1080p: 59.94/50
1080i: 59.94/50
720p: 59.94/50
480p: 59.94
576p: 50
480i: 59.94
576i: 50
WUXGA: 1920 x 1200 @ 60 Hz
UXGA: 1600 x 1200 @ 60 Hz
SXGA+: 1400 x 1050 @ 60 Hz
FWXGA: 1366 x 768 @ 60 Hz
SXGA: 1280 x 1024 @ 60 Hz
WXGA: 1280 x 768 @ 60 Hz
XGA: 1024 x 768 @ 60 Hz
SVGA: 800 x 600 @ 60 Hz
VGA: 640 x 480 @ 60 Hz

HDCP supported
Output Signal Formats
Program & Preview Output SDI
1080p: 59.94/50
1080i: 59.94/50
720p: 59.94/50

Conforms to SMPTE 424M (SMPTE 425M-AB), 292M, 259M-C
MultiView HDMI
HDCP supported
Input Level Audio In: -10 dBu (Maximum: +8 dBu)
Mic: -41 to -13 dBu (Maximum: -1 dBu)
Output Level Audio Out: -10 dBu (Maximum: +8 dBu)
Phones: 92 mW + 92 mW (32 Ohms)
Connectors
Input Video
3 x SDI, BNC
2 x HDMI Type-A

Audio
Analog: RCA phono
Mic: Stereo mini jack
Output Program
1 x SDI, BNC

Preview
1 x SDI, BNC

Multiview
1 x HDMI Type-A

Audio
Analog: RCA phono
Headphones: Stereo mini jack
Remote USB Type-B (for remote control from PC)
RS-232: DB-9
Audio Impedance Input
Audio: 15 kOhms
Mic: 10 kOhms

Output
Audio: 1 kOhms
Phones: 10 Ohms
General
Power Supply (AC) AC adapter
Current Draw 2.1 A
Power Consumption 25 W
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions (H x W x D) 12.3 x 4.3 x 2.3" / 31.3 x 10.8 x 5.9 cm
Weight 2.6 lb / 1.2 kg (excluding AC adapter)
Packaging Info
Package Weight 4.65 lb
Box Dimensions (LxWxH) 16.2 x 9.8 x 5.3"
